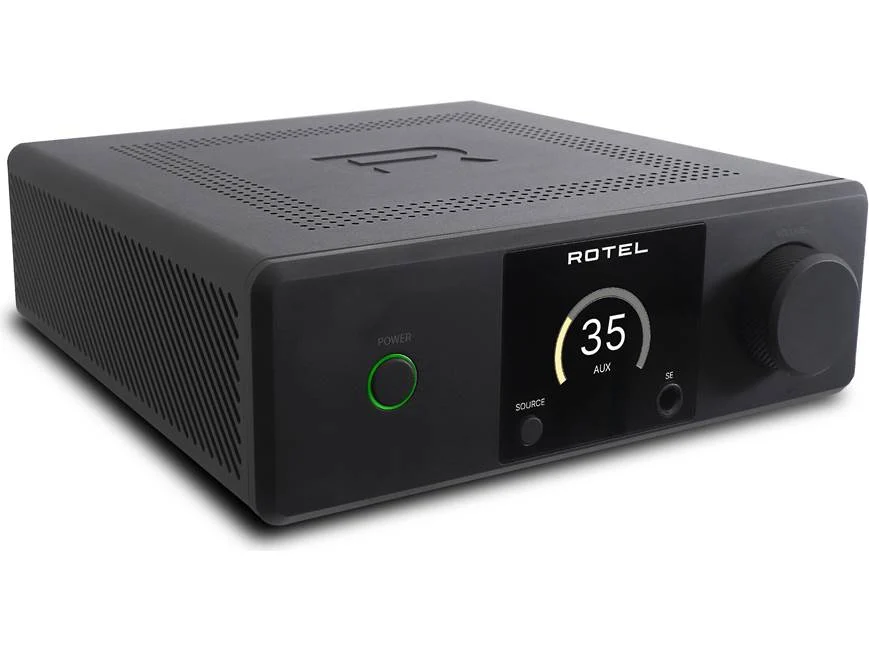

ROTEL DX5 Stereo Integrated Amplifier with ESS DAC Black
Product Description
With the ROTEL DX5, you're not just looking at another stylish box. This integrated amplifier stands out with its precision Class AB amplifier, delivering 33 watts per channel into 4 ohms, powered by a high-current toroidal transformer. It's a powerhouse packed into a sleek design.
The DX5 doesnβt just stop at amplification. It features a premium ESS ES9039Q2M DAC, ensuring each note is rendered with precision across a vast soundstage. Whether you're streaming via Bluetooth with aptX HD or connecting via HDMI ARC, you'll appreciate the clarity and detail this unit provides.
Imagine this: a cozy listening room in your Houston home, filled with rich, immersive audio from the DX5. The included full-color TFT display and intuitive remote control make it a breeze to switch between sources and tweak settings to your liking.
At MODIA, we donβt just sell you a product; we offer an experience. Schedule a demo at our Houston showroom to hear the ROTEL DX5 in action. Our expert team can also assist with in-home setup and calibration across Texas, ensuring your audio system performs at its best.
| Power Output (FTC) | 25 W / ch |
| Maximum Power Output | 33 W / ch, (4 Ξ©) |
| Continuous Power Output | 25 W / ch, (8 Ξ©) |
| Total Harmonic Distortion | < 0.03% |
| Frequency Response | 10 Hz β 100k Hz (0 Β± 0.19 dB) |
| Damping Factor | 140 (20 Hz β 20k Hz, 8 Ξ©) |
| Input Sensitivity / Impedance | 680 mV / 100k Ξ© |
| S/N Ratio (IHF "A" Weighted) | >100 dB |
| Dimensions (W Γ H Γ D) | 215 x 76 x 251mm |
| Net Weight | 4.1 kg (9.1 lbs.) |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 80 W |
| Standby Power Consumption | <0.5 W |
| Bluetooth Support | aptX HD, AAC |
| Digital Inputs | SPDIF LPCM (up to 24-bit / 192k Hz) |
| PC-USB | USB Audio Class 2.0 (up to 32-bit / 384k Hz) |
| Support DSD | up to 4X, 11.2M Hz |
Professional Installation
Expert installation by certified technicians.
Technical Support
Get help with setup and troubleshooting.
Warranty Info
Comprehensive warranty coverage.
Credit & Debit Cards
Visa, Mastercard, American Express, and Discover via Stripe.
ACH Bank Transfer
Bank transfer payments processed securely through Stripe.
Digital Wallets
Apple Pay, Google Pay, and Amazon Pay accepted at checkout.
Buy Now, Pay Later
Flexible financing through Klarna and Affirm.
Free Shipping
Free standard shipping on all U.S. orders. White glove delivery for large items.
30-Day Free Returns
Full refund within 30 days. No restocking fees. We pay return shipping.
Technical Specifications
| Power Output (FTC) | 25 W / ch |
| Maximum Power Output | 33 W / ch, (4 Ξ©) |
| Continuous Power Output | 25 W / ch, (8 Ξ©) |
| Total Harmonic Distortion | < 0.03% |
| Frequency Response | 10 Hz β 100k Hz (0 Β± 0.19 dB) |
| Damping Factor | 140 (20 Hz β 20k Hz, 8 Ξ©) |
| Input Sensitivity / Impedance | 680 mV / 100k Ξ© |
| S/N Ratio (IHF "A" Weighted) | >100 dB |
| Dimensions (W Γ H Γ D) | 215 x 76 x 251mm |
| Net Weight | 4.1 kg (9.1 lbs.) |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 80 W |
| Standby Power Consumption | <0.5 W |
| Bluetooth Support | aptX HD, AAC |
| Digital Inputs | SPDIF LPCM (up to 24-bit / 192k Hz) |
| PC-USB | USB Audio Class 2.0 (up to 32-bit / 384k Hz) |
| Support DSD | up to 4X, 11.2M Hz |
