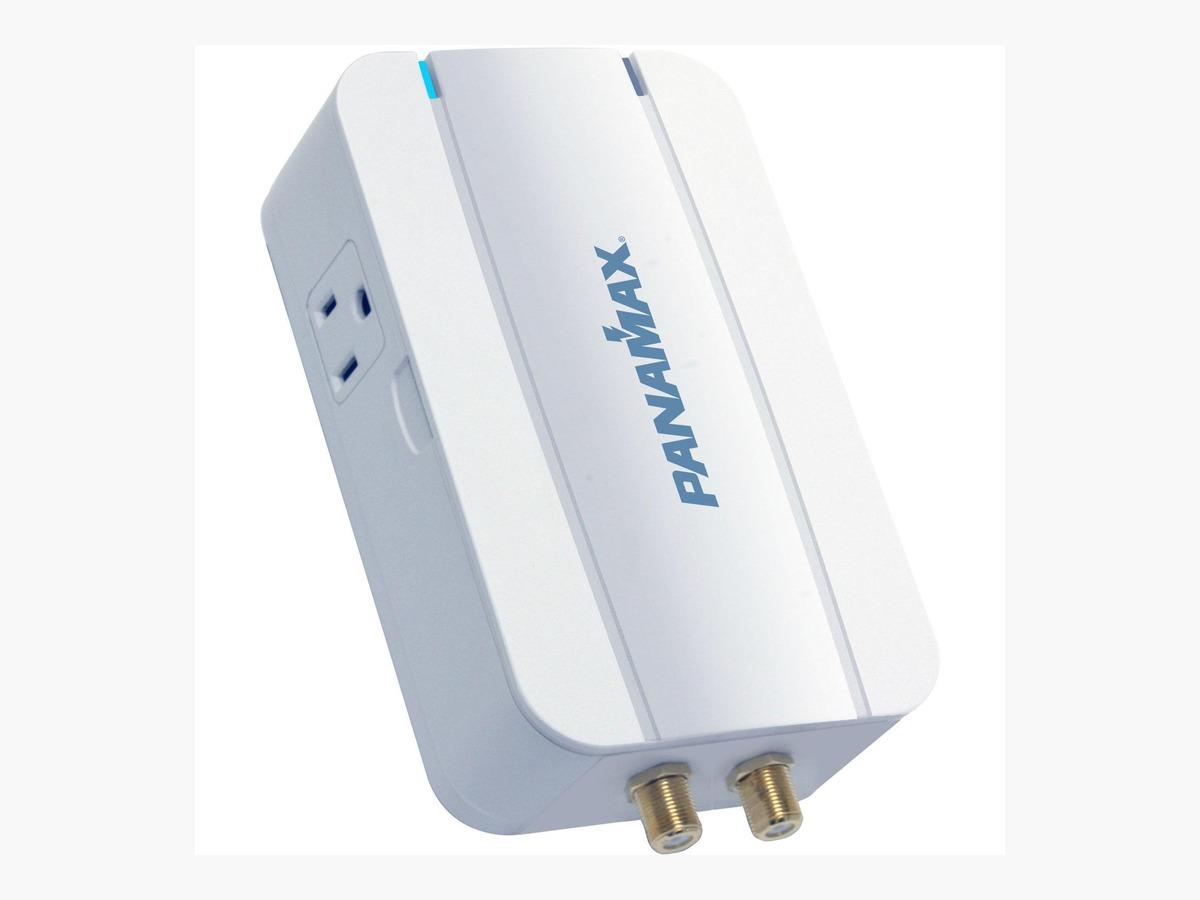

Panamax Surge Protector MD2C with Coaxial Safeguard
Product Description
When you're looking for reliable protection against surges, the Panamax MD2C stands out with its exclusive Protect or Disconnect™ Circuitry. This feature ensures that in the event of a catastrophic surge, such as a lightning strike, your equipment is completely disconnected from AC power, safeguarding it from potential damage. What sets this model apart is its built-in coaxial protection, perfect for safeguarding your CATV, satellite, or antenna connections from electrical surges that travel over low voltage lines.
The MD2C's noise filtration capabilities shouldn't be overlooked either. With EMI/RFI Filtration Circuitry, it delivers clean, unimpeded power, crucial for maintaining the performance of high-end audio and video setups. And with its universal CATV/SAT/ANT connectors, this surge protector is versatile enough to fit into various home setups, whether it's your living room entertainment center or a dedicated media room.
For those in Houston, Dallas, and Austin looking for a no-nonsense, professional-grade solution, the Panamax MD2C offers a thin profile of just 1.5 inches deep, making it a discreet addition behind your equipment. Plus, with the added peace of mind of a $100,000 Limited Connected Equipment Protection Warranty, Panamax ensures your investment is well protected. Schedule a demo in our Houston showroom to see how it can integrate into your setup seamlessly.
| Voltage Protection Rating | L-N 400V, L-G 500V, N-G 400V |
| Thermal Fusing | Yes |
| Single Pulse Energy Dissipation | 1350 Joules |
| Response Time | <1 ns |
| Peak Impulse Current | 60,000 A |
| Nominal Discharge Current | 3,000 A |
| Insertion Loss | < 5 dB |
| Frequency Range | 0MHz – 2.2GHz |
| Connectors | Female “F” CATV/Sat |
| Clamping Level | 75V |
| Dimensions | 3.25" W X 1.625" D X 5.25" H |
| Weight | 0.65 lbs |
| Maximum Current Rating | 15 Amps |
Professional Installation
Expert installation by certified technicians.
Technical Support
Get help with setup and troubleshooting.
Warranty Info
Comprehensive warranty coverage.
Credit & Debit Cards
Visa, Mastercard, American Express, and Discover via Stripe.
ACH Bank Transfer
Bank transfer payments processed securely through Stripe.
Digital Wallets
Apple Pay, Google Pay, and Amazon Pay accepted at checkout.
Buy Now, Pay Later
Flexible financing through Klarna and Affirm.
Free Shipping
Free standard shipping on all U.S. orders. White glove delivery for large items.
30-Day Free Returns
Full refund within 30 days. No restocking fees. We pay return shipping.
Technical Specifications
| Voltage Protection Rating | L-N 400V, L-G 500V, N-G 400V |
| Thermal Fusing | Yes |
| Single Pulse Energy Dissipation | 1350 Joules |
| Response Time | <1 ns |
| Peak Impulse Current | 60,000 A |
| Nominal Discharge Current | 3,000 A |
| Insertion Loss | < 5 dB |
| Frequency Range | 0MHz – 2.2GHz |
| Connectors | Female “F” CATV/Sat |
| Clamping Level | 75V |
| Dimensions | 3.25" W X 1.625" D X 5.25" H |
| Weight | 0.65 lbs |
| Maximum Current Rating | 15 Amps |
