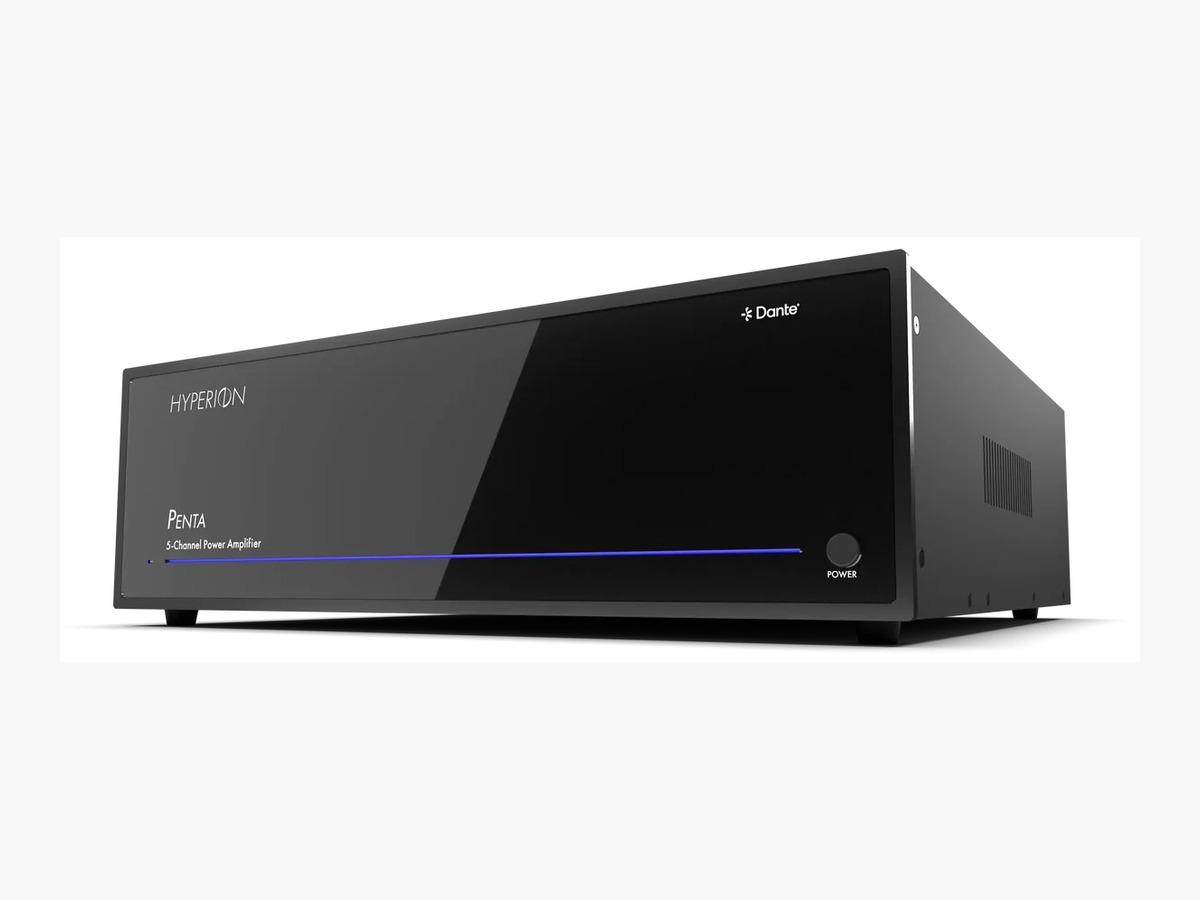

AudioControl Penta 5 Channel Class H Amplifier with Dante Networking
Product Description
If you've been searching for an amplifier that combines raw power with networking capability, the AudioControl Penta might just be your answer. It pushes 230 watts per channel at 8 ohms, ensuring that every note, whether in a quiet symphony or an action-packed movie scene, comes through with precision and impact.
Featuring a modern design that fits the Hyperion aesthetic, this 5-channel Class-H amplifier integrates smoothly with your home network thanks to its Dante-enabled connectivity. This means less cabling and a cleaner installation for your dedicated theater or multi-room setup. With both balanced XLR and unbalanced RCA inputs, plus digital audio via Dante, you’re covered for a wide range of audio sources.
Whether you’re powering a dedicated theater space or enhancing a high-end living room setup, the AudioControl Penta's high damping factor and low total harmonic distortion of 0.04% ensure your speakers are perfectly controlled and sound pure. Standing at 3U rack space and weighing in at 43 lbs, this amplifier is built to last.
For those in Houston, Dallas, or Austin, MODIA offers in-person demos to hear the Penta's capabilities firsthand. Our experts can guide you through its features and help with professional installation and calibration, ensuring your system delivers the ultimate performance tailored to your space.
| Output Power Per Channel | 230 W @ 8 Ohms | 300 W @ 4 Ohms |
| Bridged Mono Output | 600 W @ 8 Ohms |
| Minimum Speaker Load | 4 Ohms (8 Ohms bridged) |
| Frequency Range | 10 Hz - 20 kHz ±1dB |
| Total Harmonic Distortion | 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz) |
| Damping Factor | > 450 |
| Signal to Noise Ratio | > 102 dB (A-wtd ref, Full Output) |
| Analog Inputs | 5 Unbalanced RCA and 5 Balanced XLR |
| Analog Input Impedance | 100 kOhm |
| Analog Input Sensitivity | 1.42 Vrms |
| Maximum Input Voltage | 2.7 Vrms |
| Dante Inputs | 1 RJ45 - 5 Channels of Dante Audio |
| Speaker Level Outputs | 5 speaker binding posts |
| Dimensions | 17” x 16.5” x 5.25” (43.2 cm x 41.9 cm x 13.3 cm) |
| Width (Rack Ears On) | 19” (48.26 cm) |
| Weight | 43 lbs. (19.5 kg) |
| Rack Space | 3U |
