Future Automation 65"-75" PS65 Articulated TV Wall Mount
Product Description

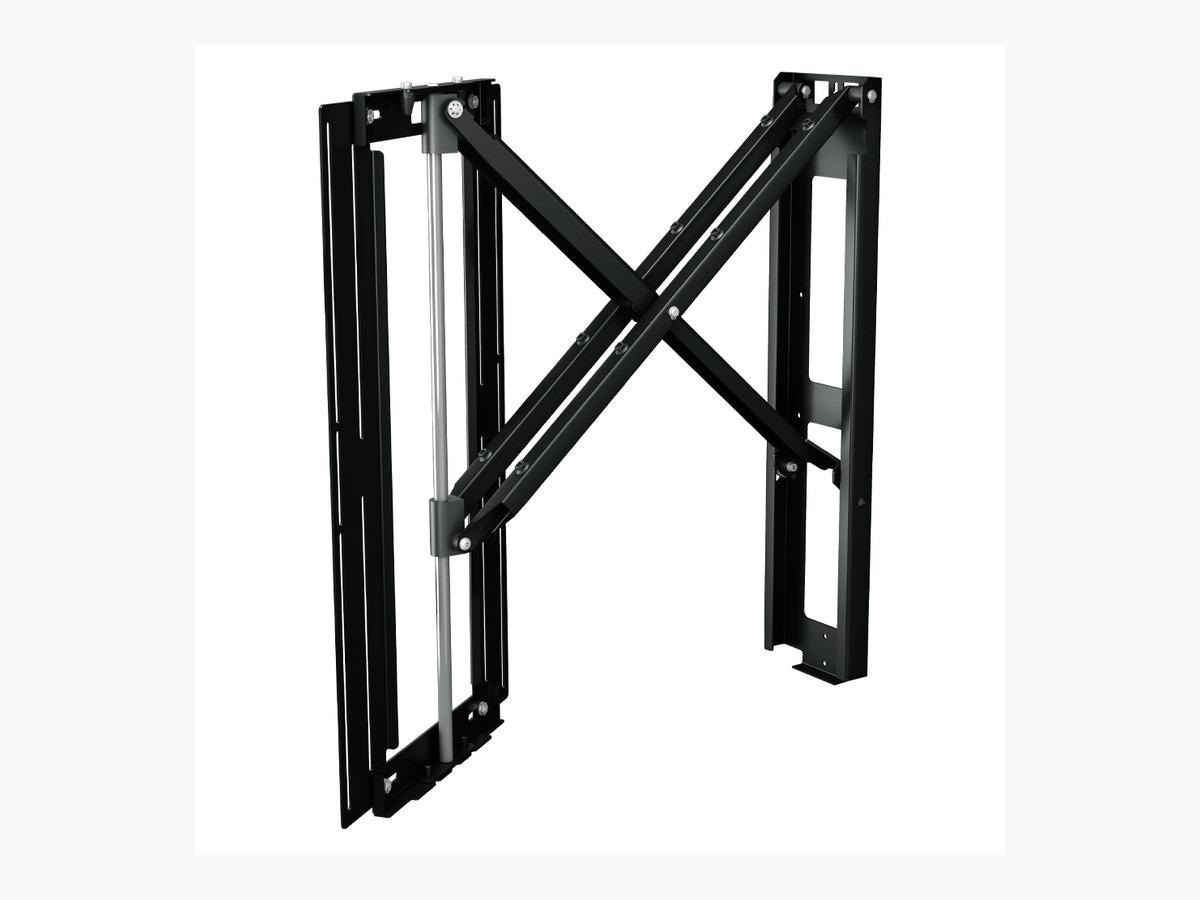

With mounting your TV without compromising on flexibility, the Future Automation PS65 articulated wall mount is a standout choice. Its unique scissor arm design allows for perfect parallel movement, enabling you to easily pull and turn even heavy screens with one hand. This manual articulated TV wall bracket serves dual purposes as either a pull-and-turn or a maintenance bracket, making it versatile for any setup.
The hook on/off screen mount simplifies installation, allowing one person to fit large screens easily. Designed for straightforward installation onto a single stud, the PS65 can also be adapted for twin stud mounting with an optional 16" stud bay kit. With a minimum depth from the wall of just 55mm, your TV sits close, offering a sleek, modern look. And, integrated cable management keeps everything tidy with included cable ties.
Ideal for home theaters or living rooms that double as entertainment hubs, the PS65 supports screens from 65" to 75", extending up to 595mm from the wall and offering up to 50° of swivel for optimal viewing angles. Mounting a sound bar is a breeze with the separately available universal speaker mount, placing audio right where you need it.
At MODIA, we're more than just a retailer. We offer professional installation and calibration services to ensure your PS65 mount works perfectly in your space. Visit our Houston showroom, or reach out from Dallas or Austin, and let us help you achieve the viewing experience you've been imagining.
| Product Code | PS65 |
| Bolt Pattern | VESA 400, 300, 200, 100 W X 600, 500, 400, 300, 200, 100 H |
| Cable Management | In-built cable tie anchors & cable ties included |
| Finish | RAL 9005 Black (Satin) - Custom available |
| Marine Suitable | No (See PS-M for marine use) |
| Max Extension from Wall | 595MM (23 7/16") |
| Max Rotation | Up to 50° each way (screen width dependent) |
| Max Weight Capacity | 60KG (132LBS) |
| Minimum Depth from Wall | 55MM (2 3/16") |
| Movement Type | Manual |
| Outdoor Suitable | No (See PS-MO for outdoor use) |
| Product Dimensions | 749 x 430 x 52MM (29 1/2" x 16 15/16" x 2 1/16") |
| Recommended Screen Sizes | 65" - 75" |
| Shipping Dimensions | 87 x 41 x 12cm (34.3 x 16.1 x 4.7") |
| Shipping Weight | 15kg (33lbs) |
