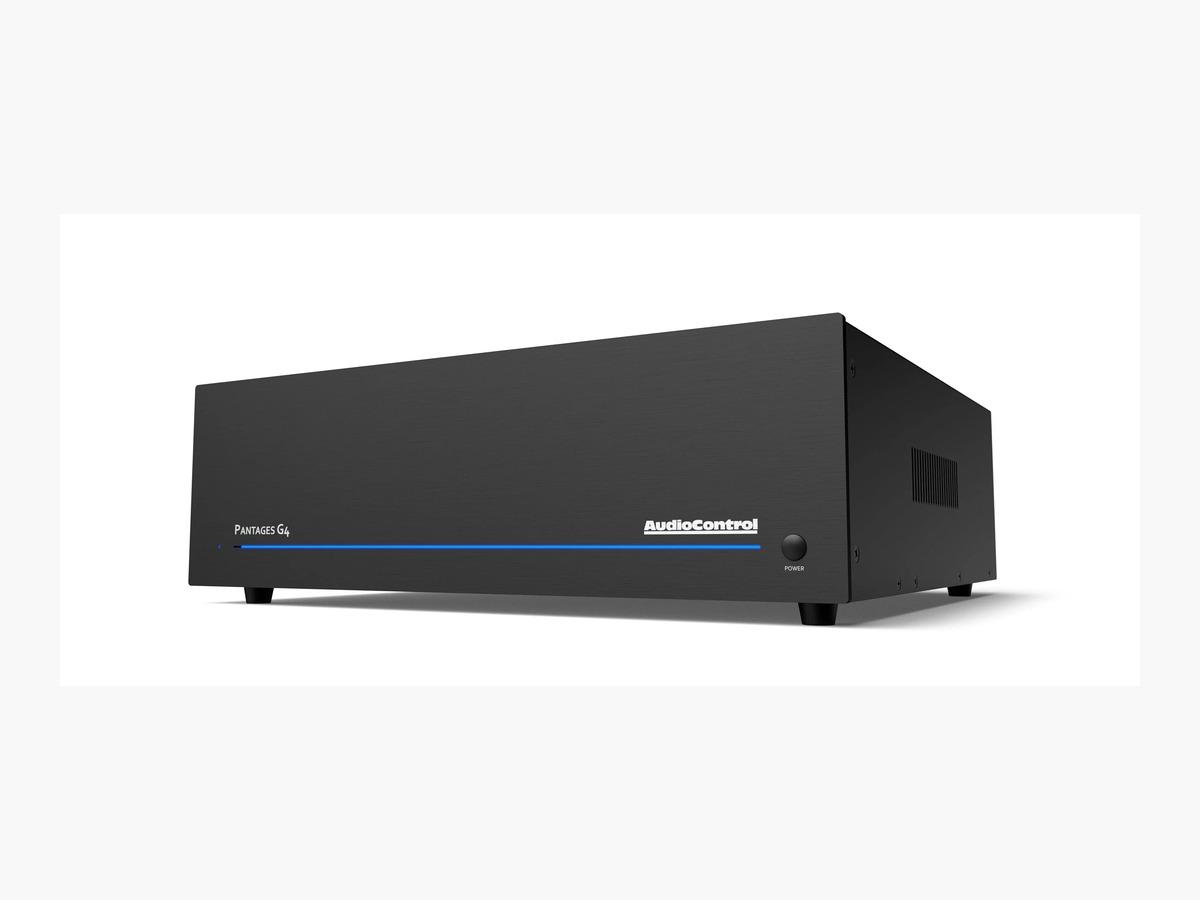

AudioControl Pantages G4 5-Channel Power Amplifier
Product Description
With the AudioControl Pantages G4, power and flexibility go hand-in-hand. This 5-channel power amplifier delivers a robust 230 watts per channel at 8 ohms, or 300 watts at 4 ohms, providing the muscle that demanding home theaters require. Its Class H design ensures cool running while maximizing efficiency, a thoughtful touch for those extended movie marathons.
Equipped with both unbalanced RCA and balanced XLR inputs, the Pantages G4 offers versatility in system integration. The High Definition BiMOS outputs and LightDrive Anti-Clipping Protection Circuitry ensure clean, distortion-free sound even at high volumes. With a damping factor greater than 450, this amplifier maintains tight control over your speakers, delivering crisp audio fidelity from 20 Hz to 20 kHz.
In a dedicated theater or a living room that doubles as one, the Pantages G4's multi-mode operation allows you to configure it for 5-channel, 3.1-channel, or high-power 2-channel setups, adapting to your specific needs. Its bulletproof reliability and remote 12-volt trigger make it a dependable cornerstone of any high-performance sound system.
At MODIA, we offer more than just products β we provide expertise. Visit us in Houston, or connect with our Dallas and Austin teams to explore how the AudioControl Pantages G4 can enhance your home audio experience. Let us assist with professional installation and calibration to ensure optimal performance in your space.
| Dimensions | 17βW x 16.5βD x 5.25βH (3U) |
| Weight | 41.0 lbs (18.6 kg) |
| Power Output (8Ξ©) | 230 watts per channel |
| Power Output (4Ξ©) | 300 watts per channel |
| Power Ouput (8Ξ© Bridged Mono) | 600 watts |
| Minimum Speaker Load | 4 Ξ© |
| Total Harmonic Distortion | 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz) |
| Frequency Response | 10 Hz to 20 kHz, Β±1 dB |
| Inputs | 5 RCA Unbalanced, 5 XLR Balanced |
| Input Sensitivity | 1.42 Vrms for full output |
| Input Impedance | 100 kΞ© |
| Signal to Noise | >102dB, A-wtd ref Full Output |
| Power Consumption (Standby) | < 2 W |
| Power Consumption (Idle) | 38W |
| Power Consumption (maximum) | 1500W |
